Ingress Protection Test
| Tested Ratings | IP54 |
| Standards | IEC 60529 : Edition 2.2 2013-08 |

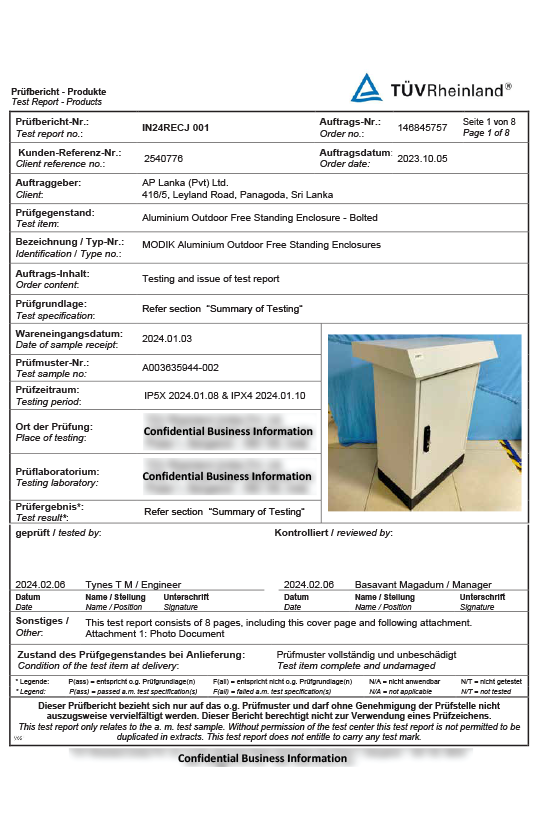

| Certification / Report Reference | Test report number IN24RECJ 001 |
| Testing Laboratory / Accreditation | TÜV Rheinland |
Protection against access to hazardous parts
| Test wire | Rigid 1mm diameter wire |
| Force | 1N ± 10% |
Protection against solid foreign objects
| Dust Volume | 2kg/m3 |
| Duration | 8 hours/h |
Protection against water
| Water jet flow rate | 0.07 l/min/nozzle |
| Distance | 2.5 to 3 metres |
| Duration | 3 minutes |
